BioStep™ 2 Semi-Recumbent Elliptical - Cycles and Ergometers - Physical Medicine

Overview

Naturally Smooth... Positively Effective

With its feature-rich design, the versatile and durable Biodex BioStep 2 can accommodate a wide variety of users and promote general strengthening and conditioning for any age group. BioStep 2 is simple to use, requires minimal supervision and allows exercise to progress at a natural pace.

The BioStep 2 Semi-Recumbent Elliptical is naturally smooth and continuous, offering exceptional comfort. Its low-impact, elliptical motion reduces the jarring start/stop direction change often associated with other recumbent steppers, eliminating the need for users to lift or strike their feet on the footplate. The step-through frame, easy-to-use display, and comfortable robust design, make the BioStep 2 the obvious choice for cross training.

Safe, Low-Impact Exercise in a variety of settings
The fluid, elliptical motion is forgiving on the knees, ankles, hips and lower back…a natural closed-chain, low-impact, functional exercise. The BioStep 2 reduces joint impact because the user is not required to lift and strike their feet on the walking surface. By combining lower extremity motion with upper body exercise, the BioStep 2 provides a total body workout in both forward and reverse directions, thereby involving different muscle groups.

Senior Living
Wellness and Fitness Centers
Physical Therapy Clinics
Rehab Hospitals
Orthopedic/Sports Medicine, and more

Ideal for Older Adults
The low-impact elliptical motion of the BioStep 2 also helps strengthen the muscles important to maintaining function – those muscles specifically associated with mobility, gait and balance.

Promotes Cardiovascular Wellness
BioStep 2 incorporates both the upper and lower extremities into the cycling motion; users experience less local muscle fatigue. This allows similar heart rates to be achieved at lower rates of perceived exertion when compared to traditional exercise ergometers. Blood pressures can be checked by simply releasing one arm while the other three extremities comfortably continue to perform the exercise.

Aerobic Conditioning for Older Adults
BioStep 2 provides a zero impact, safe and comfortable total body workout in both forward and reverse directions, making it ideal for general aerobic conditioning of your adult population.

Stabilization Accessories
Articulating hand grips and footplates add comfort while strengthening the primary muscles associated with balance, gait and mobility.

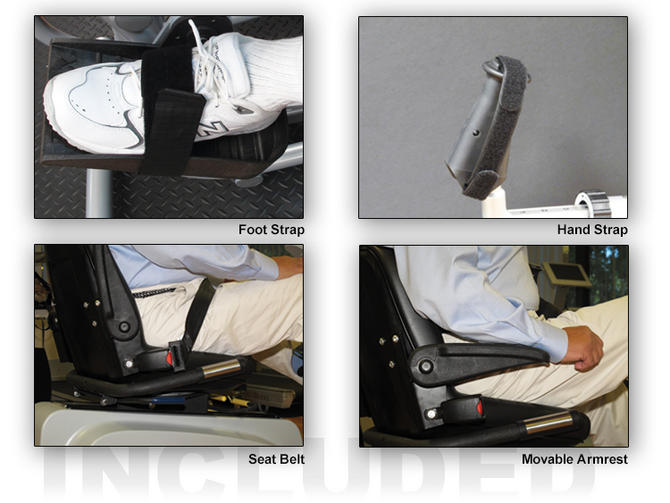

INCLUDED ACCESSORIES:

	Foot Straps A hook and loop strap that provides a simple solution to secure a user's foot to the footplate during exercise.

	Hand Straps Like the Foot Strap, a hook and loop strap provides a simple solution to secure a user's hand to the Pivoting Hand grips, enabling controlled motion during exercise.

	Seat Belt The Seat Belt offers support and security for users with limited torso control. The Seat Belt fits securely around the lower abdomen of each user and is completely adjustable. The retractable seat belt is there when needed and out of way when not.

	Movable Armrests With the addition of the movable padded armrests, users obtain an added level of comfort and stability when needed. The BioStep 2 can be used with or without the armrests in position. Armrest folds up flush against the side of seat back to provide easy-on and off access.

OPTIONAL ACCESSORIES

Stabilization Kit includes

BioStep 2 Stabilization Kit

Padded Foot Restraint and Pivoting Calf Support

For lower extremity stabilization we offer a padded foot restraint and pivoting calf support. This combination provides support to the calf while allowing the user to exercise and experience the smooth BioStep motion. The calf support pivots, allowing the ankle to move as it would naturally in gait. The padded foot restraint is a convenient and comfortable means to secure the foot to the footplate, thereby maintaining correct loading of the joints and postural alignment during exercise.

NOTE: Pivoting Calf Support can be easily removed when not in use.

Hand/Wrist Cuffs

Users with hand and wrist limitations will find comfort with the articulating hand grips and security of maintaining stable hand position throughout the exercise session. The Hand/Wrist Cuffs allow users with limited or no hand strength or control to enjoy the benefits of the BioStep’s upper body exercise.

NOTE: Hand/Wrist Cuffs are also sold separately.

Features

Elliptical motion – provides smooth continuous “zero-joint impact” exercise
Self powered, self charging – cordless capability; use it anywhere
1:1 arm to leg motion – for natural arm swing rhythm
Articulating hand grips – provide comfort for those with forearm or wrist impingements
Rotating seat – to 90° on either side with step-through design for easy and safe access
Movable armrests – for added comfort and stability when needed
Seat belt – offers support and security for users with limited torso control
Optimized seat height – for wheelchair transfers and controlled hip flexion
Up to 600 watts – to accommodate a wide spectrum of users
Constant resistance – 20 effort levels provide greater program options
Heart rate monitoring – Polar® contact hand grips (telemetry compatible) to ensure proper training intensity
Sturdy – well-placed grab handles provide added stability
Large, easy-to-use “Quick Start” display – features time, rpm, watts, calories, METs, distance, total steps, heart rate
Large utility holder – provides a convenient storage place for water bottles and allows for hands-free reading
Robust design – for heavy institutional use
Stabilization Kit– optional

Biodex, Inc.

Stabilization Kit

Custom to the user's needs

Users with Neurological and Musculoskeletal issues commonly present with decreased strength, proprioception and kinesthetic awareness deficiencies or edema. These and other factors add to the challenges of maintaining the upper or lower extremity properly and comfortably on the device during exercise.

BioStep™ 2 is supported by a collection of stabilization accessories to allow users with these challenges to enjoy the benefits of exercise.

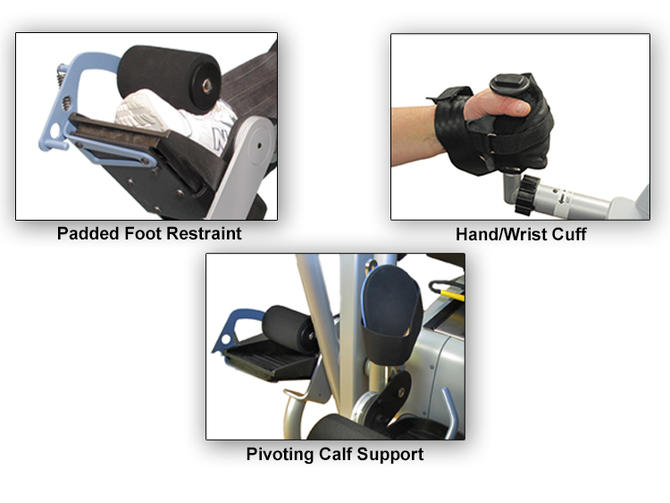

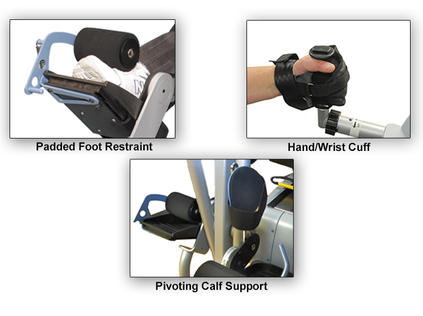

BioStep 2 Stabilization Kit includes:

Padded Foot Restraint
Pivoting Calf Support
Hand/Wrist Cuff (large)

STABILIZATION ACCESSORIES

BioStep 2 Stabilization Kit

Padded Foot Restraint and Pivoting Calf Support

For lower extremity stabilization, we offer a padded foot restraint and pivoting calf support. This combination provides support to the calf while allowing the user to exercise and experience the smooth BioStep motion. The calf support pivots, allowing the ankle to move as it would naturally in gait. The padded foot restraint is a convenient and comfortable means to secure the foot to the footplate, thereby maintaining correct loading of the joints and postural alignment during exercise.

NOTE: Pivoting Calf Support can be easily removed when not in use.

Hand/Wrist Cuffs (large)

Specifications

Dimensions: 54" l x 28" w x 44" h (137 x 71 x 112 cm)
Resistance: Constant resistance with 20 effort levels
Work Rate Range: Up to 600 watts (120 rpm)
Heart Rate Monitoring: Polar® contact hand grip (telemetry compatible)
Readouts: Time, rpm, watts, calories, METs, heart rate, distance and total steps
User Capacity: 500 lb (227 kg)
Weight: 202.5 lb (92 kg)
Power: Self-powered; no external power requirement at user work rates over 30 watts and 50 rpm; adapter is provided to power system and charge battery during applications below 30 watts and 50 rpm; battery automatically recharges at work rates above 30 watts and
50 rpm. AC Adapter included.
Certifications: ETL listed to UL60601-1 and CAN/CSA C22.2 No.601.1.M90, EN 60601-1: 2nd Edition. EMC compliance to EN 60601-1-2.
Warranty: Two years parts; one-year labor

Models and Ordering

To order, call 1-800-224-6339

950-240

BioStep™ 2, 100-240 VAC
Includes: foot straps, hand straps, seat belt and movable armrests

Export models available.

Optional:

950-242	Stabilization Kit Includes: pivoting calf support, padded foot restraint and hand/wrist cuffs
950-247	Hand/Wrist Cuffs, Small (Pair)
950-243	Hand/Wrist Cuffs, Medium (Pair)
950-234	Hand/Wrist Cuffs, Large (Pair)
