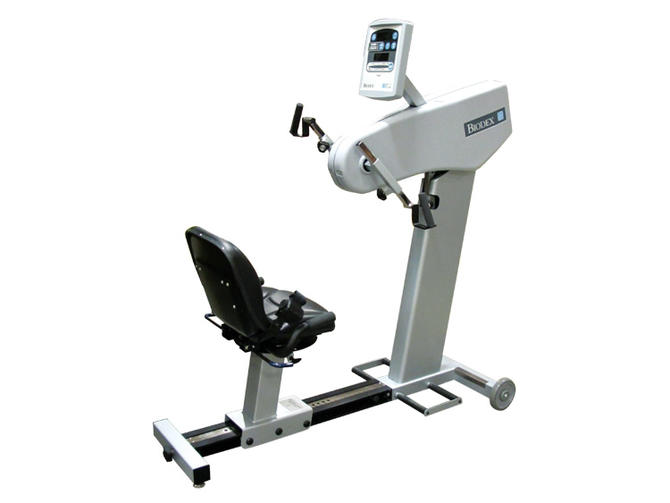

Upper Body Cycle
An upper-body ergometer that will exercise individuals with limited lower-body function.
| Overview | Features | Applications | Specifications | Manuals | Models and Ordering |
Overview
Functional Diversity
The Biodex Upper Body Cycle is a versatile ergometer that can be used in orthopedic rehabilitation, cardiac, sports medicine, wellness, or home settings. It will exercise individuals with limited lower-body function, help enhance mobility and muscle tone in the shoulder, back, neck, wrist, and elbow, and give healthy athletes a grueling workout.
Unique Self-Powering System
Use the Upper Body Cycle anywhere. There is no need for AC power, since the internal battery is automatically recharged when work rates reach or exceed 30 watts and 50 rpm. The battery-supported system maintains all settings and LED displays before and after cycling. An AC adapter is provided for extended use at work rates below 30 watts and 50 rpm.
User-Friendly
The "Quick-Start" feature gets your first-time cyclists right into their exercises. Isokinetic (speed control) provides accommodating resistance throughout the cyclist's entire range of motion for the duration of the exercise period. Resistance continuously matches effort, accommodating to variations in the patient's force output due to weakness or pain at specific points in the individual's range of motion, and to fatigue over the course of the cycling period. With a selection of 15 speeds (50 to 120 deg/sec), this resistance mode maximizes strength gains while minimizing the potential for injury.
Full-Function Retro-Cycling
Conditioning capabilities are expanded by providing bi-directional cycling to alternately work reciprocal muscle groups.
Built for High-Use Environments
The welded heavy-gauge steel frame, epoxy powder-coat finish, and moisture-resistant ABS plastic enclosure, round out a rugged and durable design that will withstand extensive use in the busiest settings. Large wheels make transporting and repositioning easy. Heart rate monitoring can be achieved with a telemetry chest strap to track heart rate without interrupting exercise – useful for achieving target heart rate, and for monitoring high-risk individuals.
OPTIONAL:
 |

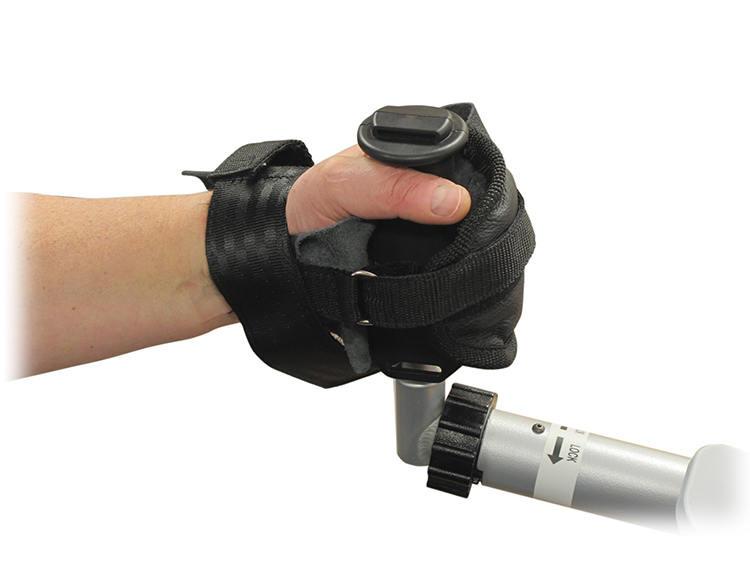

Hand/Wrist Cuffs Those with hand and wrist limitations will find comfort and security of maintaining stable hand position throughout the exercise session. The Hand/Wrist Cuffs allow users with limited or no hand strength or control to enjoy the benefits of upper body exercise. |
Features
Upper Body Cycle
- Self-powered, self-charging, cordless capability – use it anywhere!
- Pivoting actuator – accommodates wide range of cycling positions
- Adjustable Crank Length – crank adjusts from 6" to 16" to help control range of motion provided for a variety of arm and upper body exercises
- Instantaneous retro-cycling
- Up to 600-watt work rate range to accommodate a wide spectrum of ability levels
- Isokinetic Resistance – (speed control) for building strength
- Heart rate monitoring – Telemetry compatible to ensure proper training intensity
- Easy-to-use "Quick-Start" control panel – with large buttons
- Large, easy-to-view LED display
- Ergonomically correct for users from 4'6" to 6'10" tall, and weighing up to 500 lb

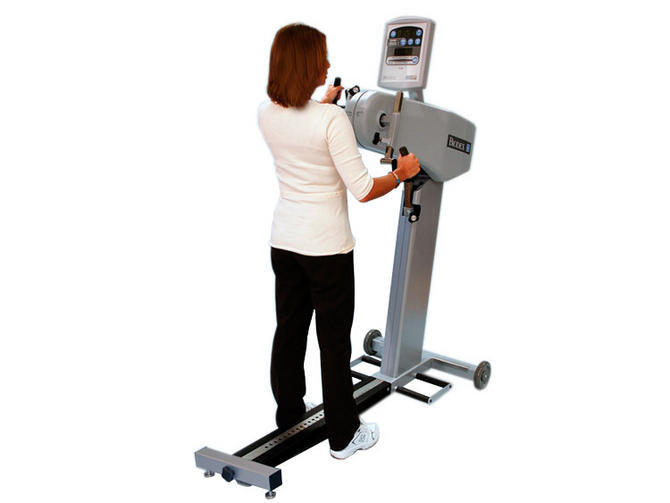

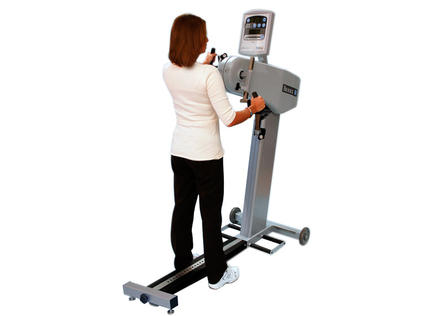

- Removable seat for wheelchair or standing access

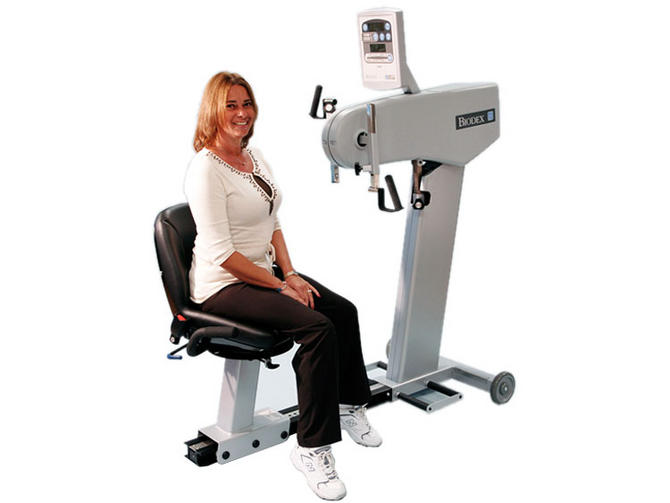

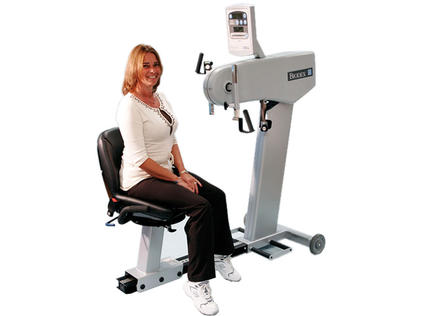

- Comfortable rotating seat with seat belt and grab handles - easy wheelchair transfers - belt and handles provide added security
- EZ-Grip™ hand grips allow users to firmly hold onto crank handles
Applications
Total upper body strengthening and conditioning for all shoulder, back, neck, wrist and elbow.
Warm-Up:
Provides a great warm-up prior to all upper body exercises.
Sports Medicine:
Enables cardiovascular activity for early phase ACL users. Provides internal/external rotation exercise against bi-directional isokinetic resistance, useful for the throwing athlete.
Carpal Tunnel Syndrome:
Excellent warm-up prior to activities.
Wheelchair Users:
Low seat height makes wheelchair transfer easy or seat can be removed entirely to allow exercises while remaining in the wheelchair. Adjustable pivoting actuator easily accommodates all wheelchair users.
Total Hip and Total Knee Replacements:
Upper Body Cycling may help maintain conditioning for older adults following surgery.
Cardiovascular Wellness:
Low-impact exercise may help maintain cardiovascular health for any age group, and anyone with lower extremity mobility issues or impairments.
Specifications
- Dimensions: 64" l x 29" w x 62" h (162 x 74 x 157 cm)
- Crank Axis Height: Adjustable from 37" to 58" (94 to 147 cm)
- Crank Arm Length: Adjustable from 6" to 16" (15 x 41 cm)
- Resistance: Isokinetic (speed control): 15 speed settings (increments of 5 deg/sec)
- Work Rate Range: Up to 600 watts (120 rpm)
- Speed Control Range: 50 to 120 deg/sec
- Readouts: Time, rpm, watts, calories, METs, heart rate, total work, total cycles
- Heart Rate Monitoring: Telemetry compatible
- Communication: RS232
- User Capacity: 500 lb (227 kg)
- Weight: 230 lb (105 kg)
- Power: Self-powered; no external power requirement at user work rates over 30 watts and 50 rpm; 115 VAC adapter (230 VAC available) is provided to power system and charge battery during applications below 30 watts and 50 rpm. Battery automatically recharges at work rates above 30 watts and 50 rpm.
- Certification: ETL listed to UL60601-1 and CAN/CSA C22.2 No.601.1.M90, EN 60601-1: 2nd Edition. EMC compliance to EN 60601-1-2.
- Warranty: Two-years parts; one-year labor
 |
Manuals
Models and Ordering
To order, call 1-800-224-6339
| 950-148 | Cycle, Upper Body Includes: Rotating seat, seat belt and EZ-Grip™ hand grips |
Optional:
| 950-247 | Hand/Wrist Cuffs, Small (Pair) | |
| 950-243 | Hand/Wrist Cuffs, Medium (Pair) | |
| 950-234 | Hand/Wrist Cuffs, Large (Pair) |
