Portable Motorized Lift

Portable Motorized Lift
Zoom

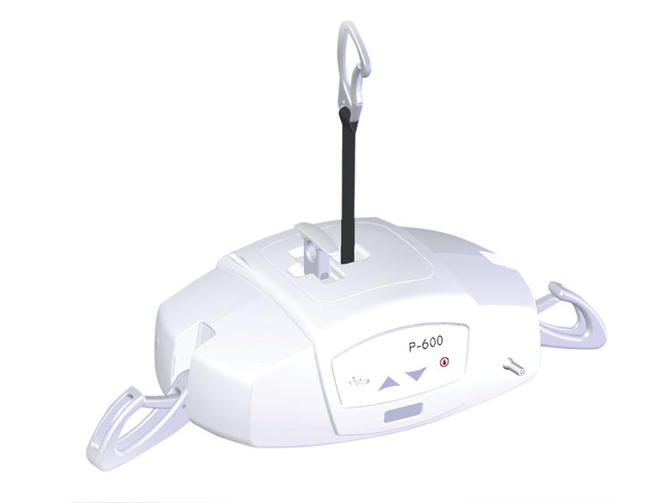

Lightweight and portable, the P-600 is designed to provide complete control for the therapist.

OverviewSpecificationsManualsModels and Ordering

Overview

The P-600 simplifies height adjustments when using the Biodex FreeStep SAS for supported ambulation in a therapy setting. Lightweight and portable, this motorized lift attaches to the support harness to provide complete control for the therapist. With a patient load capacity of 600 pounds, this heavy-duty lift is suitable for higher weight transfers.

Powered by non-proprietary batteries, the P-600 offers a cost-effective option to institutions. Additionally, the P-600 comes standard with a full range of features such as on-board controls and emergency lowering. Its on-board controls are complemented by a pneumatic hand control, enhancing maneuvering options for the lift.

Equipped with a digital display, the P-600 offers real-time feedback, a battery indicator, lift counter and preventative maintenance notification. These features and more make the P-600 a popular addition to our range of products for Safe Patient Handling & Mobility.

Biodex Medical Systems, Inc.

Specifications

  • Charger Output:  29.5 VDC, 1.3 Amps
  • Batteries:  24 VDC (2 x 12 VDC), 5.0 AH
  • Hand Control:  Pneumatic - Piston Displacement
  • Lifting Range:  Up to 80" (1.96m)
  • Unit Weight:  25 lbs. (11.428 kgs)
  • Maximum Load:  600 lbs. (274.28 kgs)

Manuals

Models and Ordering

To order, call 1-800-224-6339

960-117 Portable Motorized Lift
